连接一个秤

A scale can be connected to the IoT box on an Odoo database in a few easy steps. After setup, the Point of Sale app can be used to weigh products, which is helpful if their prices are calculated based on weight.

重要

• In EU member states, certification is legally required to use a scale as an integrated device.

• Odoo is not certified in several countries, including France, Germany, and Switzerland. If you reside in one of these countries, you can still use a scale but without integration to your Odoo database.

• Alternatively, you have the option to acquire a non-integrated certified scale that prints certified labels, which can then be scanned into your Odoo database.

另请参阅

Directive 2014/31/EU of the European Parliament

连接

要将秤连接到 IoT 盒子上，使用 USB 电缆连接它。

注解

在某些情况下，可能需要使用串口到 USB 适配器。

如果秤 与Odoo IoT Box兼容，则无需设置 任何东西，因为一旦连接，它将自动检测到。

在某些情况下，可能需要重新启动 IoT 盒子，并且可能需要将秤的驱动程序下载到盒子中。要更新驱动程序，请转到 IoT 盒子主页，并单击 驱动程序列表。然后，单击 加载驱动程序。

If loading the drivers still doesn’t allow for the scale to function, it may be that the scale is not compatible with the Odoo IoT box. In this case, a different scale will need to be used.

在销售点（POS）系统中使用秤

要在 销售点应用程序 中使用秤，请转到： 销售点应用程序 ‣ 销售点上的3点菜单 ‣ 设置 ，然后启用 IoT（物联网） 框功能。完成后，可以设置秤设备。

从 电子秤 下拉菜单中选择秤。然后点击 保存 来保存更改，如果需要的话。

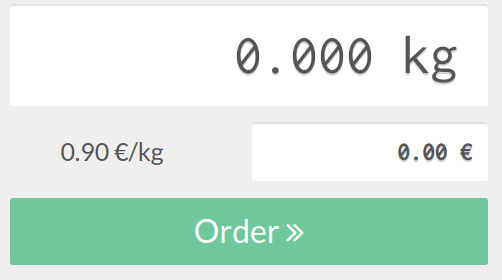

现在在所有的 PoS 会话中都可以使用秤。现在，如果一个产品设置了按重量计价，点击 PoS 屏幕上的产品会打开秤屏幕，收银员可以称重产品并将正确的价格添加到购物车中。
