SIX

Connecting a SIX payment terminal allows you to offer a fluid payment flow to your customers and ease the work of your cashiers.

Warning

Even though Worldline has recently acquired SIX Payment Services and both companies use Yomani payment terminals, the firmware they run is different. Terminals received from Worldline are therefore not compatible with this integration.

Configuration

Install the POS IoT Six module

To activate the POS IoT Six module, go to Apps, remove the Apps filter, and search for POS IoT Six. This module adds the necessary driver and interface to your database to detect Six terminals.

Note

This module replaces the POS Six module.

Connect an IoT box

Connecting a Six payment terminal to Odoo is requires using a Raspberry Pi or virtual (for Windows OS only) IoT box.

Configure the terminal ID

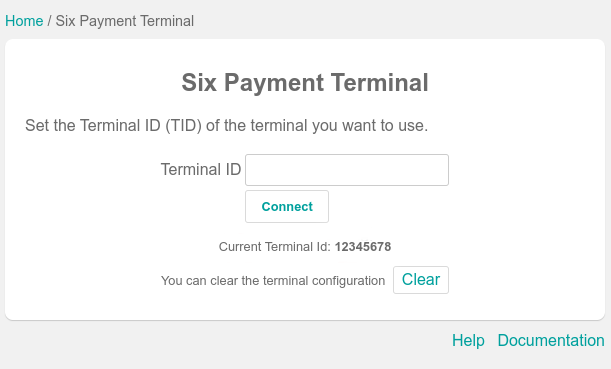

Navigate to your IoT Box homepage, where you can find the Six payment terminal field once your database server is connected to the IoT box. Click Configure, fill in the Terminal ID field with the ID received from Six, and click Connect. Your Six terminal ID should appear in the Current Terminal Id section.

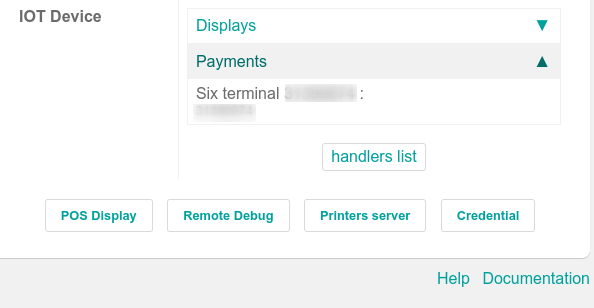

Odoo automatically restarts the IoT box when the Six terminal ID is configured. If your Six terminal is online, it will be automatically detected and connected to the database. Check the IoT box homepage under the Payments section to confirm the connection.

Configure the payment method

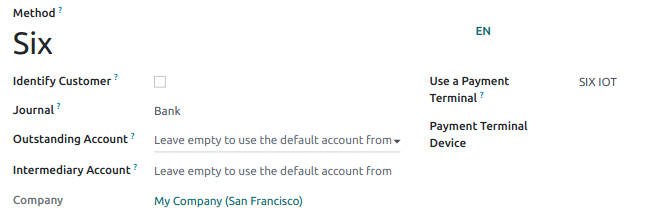

Enable the payment terminal in the application settings and create the related payment method. Set the journal type as Bank and select SIX IOT in the Use a Payment Terminal field. Then, select your terminal device in the Payment Terminal Device field.
